Balancing motor performance with purchasing cost is important for businesses serving price-sensitive fan markets. Pedestal Fan Motor provides a practical drive solution for residential standing fans used in living rooms, bedrooms, shops, and similar indoor spaces. It is suitable for new fan assembly and compatible replacement projects. The combination of reliable operation and competitive value helps manufacturers and wholesalers control component costs while maintaining suitable performance for everyday pedestal fan use.

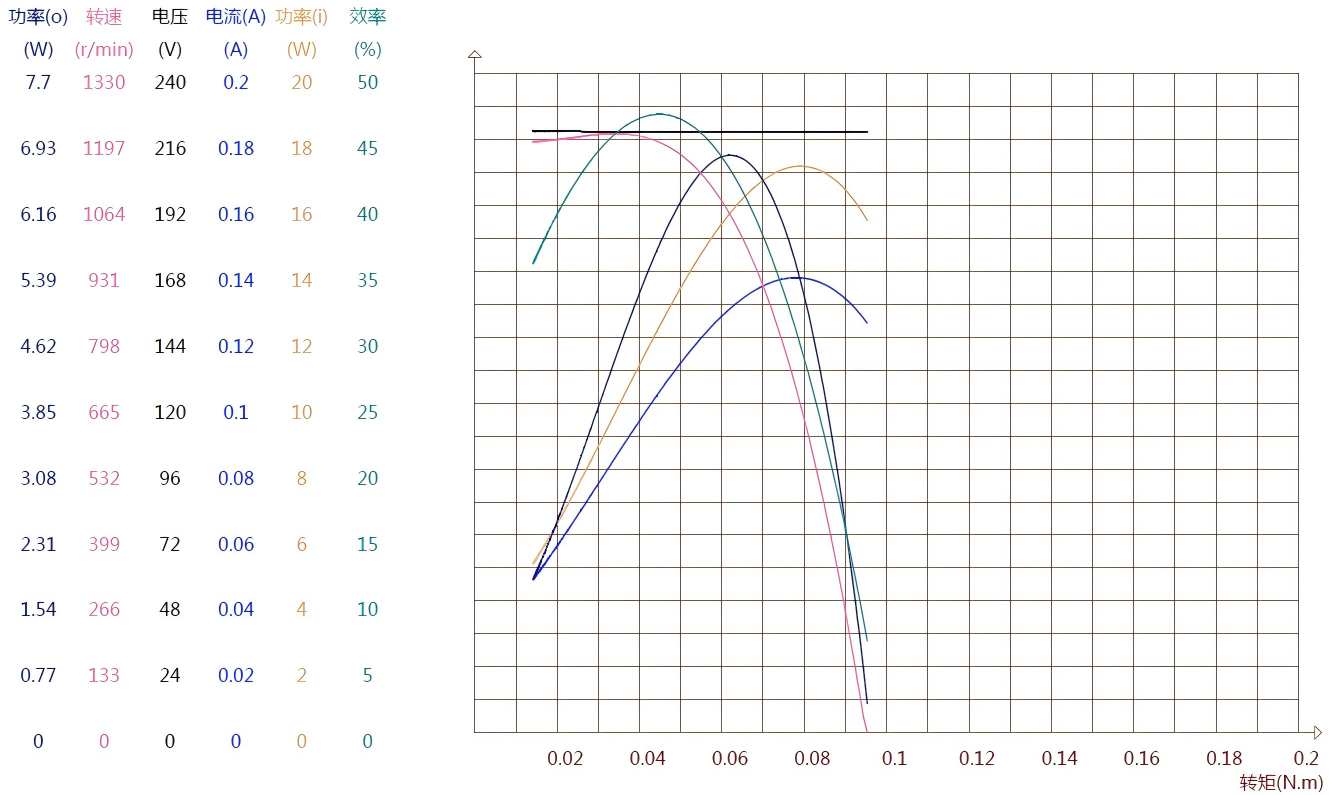

58B Performance curves

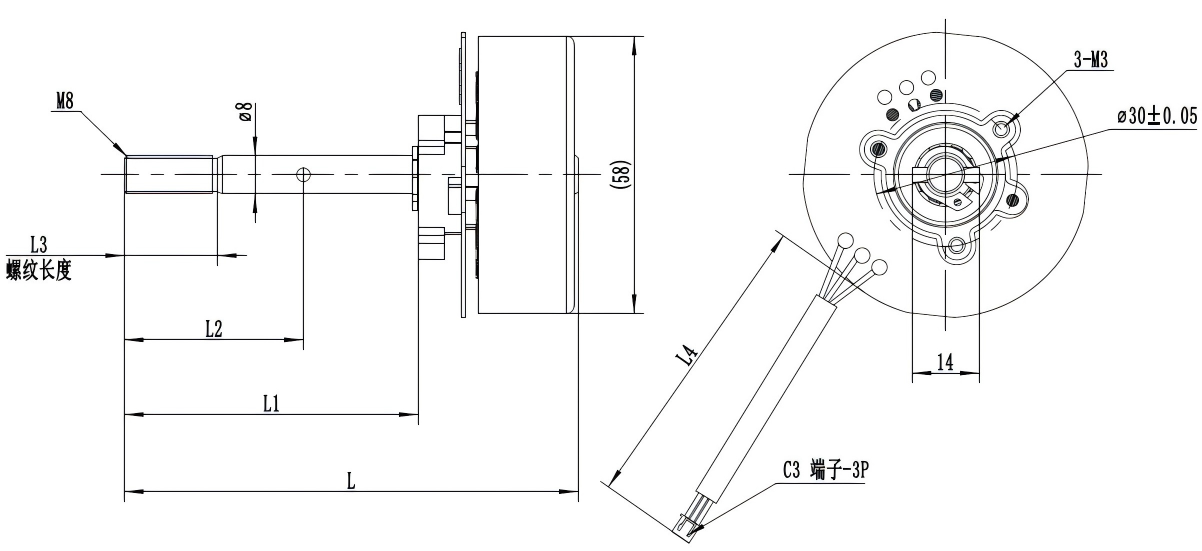

58B External dimensions
| Model No. | BE5810A007 | |
| Voltage | 24V | |
| Wire | CCA | |
| Shell Material | galvanized steel sheet | |
| Stator | Diameter | 48.5mm |
| Thickness | 8mm | |
| Slot Number | 12 | |
| Material | silicon steel | |
| Rated-Load | Speed (r/min) | 1100 |
| Power (W) | 18 | |
| Noise (dB(A)) | ＜40 | |
| Operation Life (Hours) | ＞8000 | |
| Application | Bedroom ceiling fan, Bathroom heater, Pedestal fan, Cirulation fan, Exhaust fan | |
1、24V 18W Configuration for Pedestal Fans
Model BE5810A007 operates at 24V with 18W rated power and reaches 1100 r/min under rated load. This specification supports pedestal fan projects requiring steady airflow without using an oversized motor configuration.
Our factory can test the motor with the buyer’s blade and controller to check startup, current and speed response. This helps confirm the complete fan performance before mass production.
2、48.5mm Silicon Steel Stator
The motor uses a 48.5mm diameter and 8mm thick silicon steel stator with 12 slots. The compact stator structure is suitable for pedestal fan housings with limited internal installation space.
During production, the stator dimensions, slot condition and winding specification follow the approved sample. This supports more consistent output across repeat batches.
3、CCA Winding and Galvanized Steel Shell
CCA wire is used for the winding, while the galvanized steel sheet shell protects the internal motor components. The metal shell provides a stable structure for assembly inside the fan motor housing.
Production inspection covers winding arrangement, shell assembly and visible motor condition. Mechanical details can also be reviewed according to the buyer’s fan structure.
4、Low Noise and Long Operating Life
The listed operating noise is below 40dB(A), making the motor suitable for pedestal fans used close to people in homes, offices and commercial spaces. Its operation life exceeds 8000 hours under the approved electrical and load conditions.
Before delivery, the factory can check rated-load speed, running noise, vibration and general operating condition. Complete fan testing is recommended because the blade and housing also affect the final noise level.
1、Household Pedestal Fans
This motor can be used in pedestal fans for bedrooms, living rooms and dining areas. The below-40dB(A) noise level and 1100 r/min rated-load speed are suitable for regular household airflow needs.
2、Office and Shop Floor Fans
Pedestal fans used in offices, reception areas and small shops require stable daily operation. The 24V and 18W configuration can be matched with a compatible controller for different speed settings.
3、OEM Standing Fan Projects
Fan manufacturers can use model BE5810A007 for new pedestal fan development or existing product updates. The motor should be tested with the actual blade, housing and controller before the final specification is approved.
4、Compact Commercial Ventilation Fans
The motor can be evaluated for pedestal fans used in waiting rooms, small restaurants, retail counters and shared indoor spaces. Buyers should confirm the blade load, operating time and required airflow before bulk production.
5、Replacement Motor Supply
Motor distributors and appliance repair suppliers can use BE5810A007 for compatible pedestal fan replacement projects. Voltage, shaft dimensions, mounting position, rotation direction and connector type should be checked against the original motor before ordering.
1、Keep the Airflow Path Clean
Dust around the fan housing and motor ventilation area can affect heat dissipation. Users should clean the fan regularly without allowing water to enter the motor or controller.
2、Check Blade Balance
A loose or unbalanced blade may create extra vibration and motor load. The blade hub should be fitted correctly to the shaft and inspected when abnormal noise appears.
3、Monitor Wiring and Operation
Loose connectors or an unsuitable controller may cause difficult startup or unstable speed. The fan should be disconnected from power before the wiring is inspected.
4、Inspect Motor Mounting Parts
Loose mounting screws or an incorrect motor position may increase vibration during operation. The motor, bracket and fan housing should be checked regularly to maintain stable alignment.
5、Watch for Noise and Temperature Changes
An increase in noise or motor temperature may indicate blocked ventilation, blade imbalance or excessive load. The fan should be stopped and inspected before continued use to reduce the risk of motor damage.
For B2B buyers, adding these maintenance points to the user manual can reduce returns caused by incorrect installation, cleaning or long-term operation.
For a Pedestal Fan Motor quotation, please provide the required quantity, fan blade information, shaft and mounting dimensions, controller details, connector requirement and target market.
Our team can evaluate model BE5810A007 according to the complete pedestal fan structure. Motor sampling, controller matching and finished-fan performance testing can be discussed before order confirmation.
