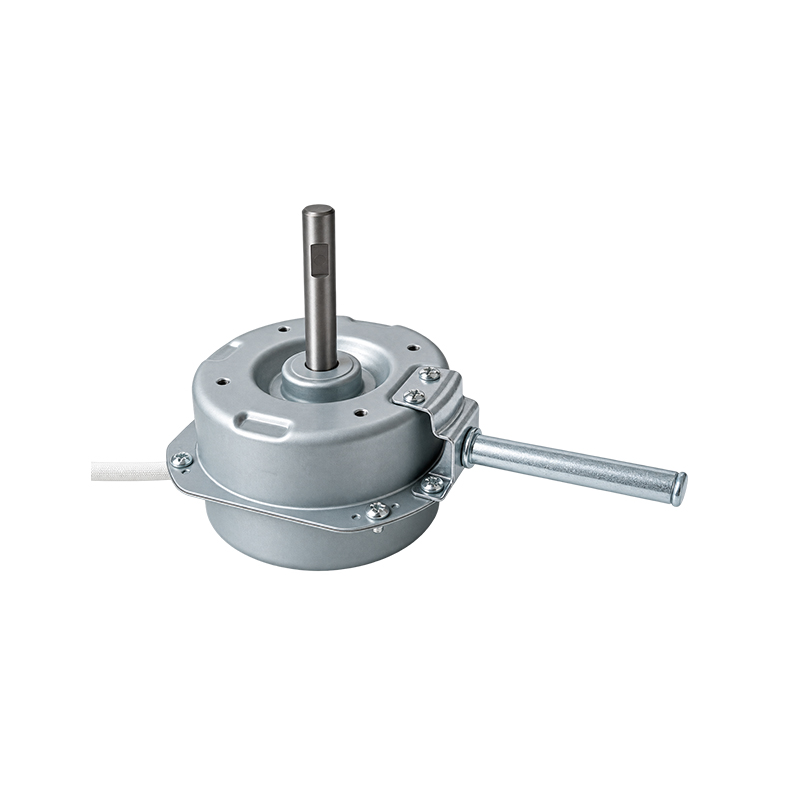

The 80W Pure Copper Winding Industrial Floor Fan Industrial Motor is developed for industrial ventilation systems that require continuous airflow, stable rotation and dependable operating performance. Equipped with pure copper winding, ball bearing structure and a rated speed of 1350RPM, this motor provides smooth operation with noise below 40dB(A) and an operation life exceeding 8000 hours. The BE10720B001 model supports 24VDC and 311VDC motor operating voltage options, making it adaptable to different industrial fan designs and cooling equipment requirements. As an experienced Industrial Fan Motor Manufacturer, we provide customized motor solutions for industrial floor fan producers, cooling fan brands, equipment suppliers and bulk buyers worldwide.
| Model | Diameter Thickness (mm) | Bearing Type | Noise (dB(A)) | Operation Life (H) | Motor Operating Voltage (VDC) | Controller Operating Voltage (VAC) | Input Power (W) | Speed (r/min) |
| BE10720B001 | Φ107-20 | Ball Bearing | <40<> | >8000 | 24VDC / 311VDC | 220V (Rated) / 100-260V (Operating) | 80 | 1350 |
1. 80W Output for Larger Fan Loads
The 80W input power provides a stronger drive configuration for industrial floor fans and larger air movement products compared with compact household fan motors. The 1350RPM rated speed gives manufacturers a defined operating point for evaluating the motor together with the selected blade and fan housing.
For B2B buyers, matching the motor to the actual blade load is more important than simply selecting a higher wattage motor. Blade diameter, weight and required airflow should therefore be reviewed together during project development.
2. Pure Copper Winding for Stable Operation

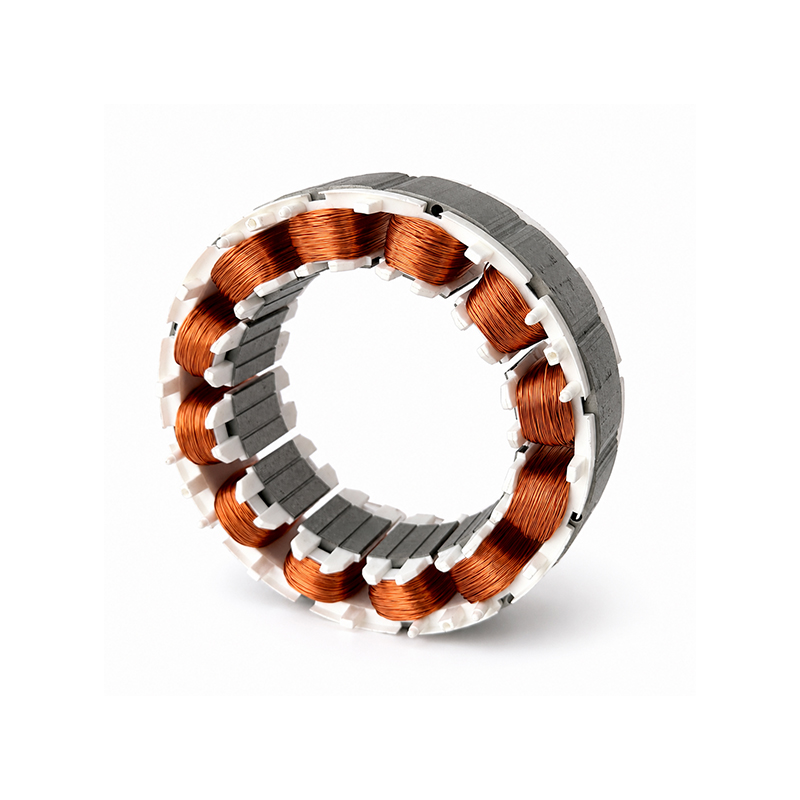

The motor uses pure copper winding to provide a reliable electrical drive structure for continuous fan operation. Copper winding also supports stable current conduction and helps manufacturers maintain consistent motor performance across repeated production batches.
For fan factories purchasing motors in volume, winding material and production consistency can directly affect finished-fan performance and quality control.
3. Ball Bearing Structure for Continuous Rotation
A ball bearing structure supports smooth shaft rotation during extended operation. This is particularly relevant for industrial floor fans that may run for long periods in workshops, commercial spaces or other areas where continuous air movement is required.
Stable bearing operation can also help control mechanical friction and contribute to consistent running performance over the motor's service life.
4. Low Operating Noise Below 40dB(A)
The listed motor noise is below 40dB(A), providing a useful specification for buyers developing fan products where operating noise needs to be controlled. The actual sound level of the finished fan will still depend on the blade, housing, grille, mounting structure and controller.
For OEM projects, testing the motor together with the complete fan assembly is recommended rather than evaluating motor noise separately.
5. 8000+ Hour Operating Life
The motor is specified with an operating life exceeding 8000 hours under the applicable operating conditions. This gives distributors and fan manufacturers a useful service-life reference when evaluating products intended for repeated or extended operation.
Longer operating life can also help reduce replacement frequency and support more reliable after-sales performance for finished fan products.
1. Industrial Floor Fans
This motor is suited to industrial floor fan designs requiring stronger airflow and longer operating periods than typical residential fans. The 80W, 1350RPM configuration can be evaluated with different blade sizes and fan-head structures according to the finished product requirements.
2. Workshop Air Circulation Fans
Workshops and production areas often need continuous air movement rather than short-duration household cooling. The motor's long operating-life specification and ball bearing structure make it suitable for fan projects intended for these working environments.
3. Commercial Cooling Equipment
Commercial cooling fans used in retail, storage, service and light industrial environments require dependable rotation and manageable operating noise. The motor can be matched with the required blade and controller to develop different finished fan configurations.
4. OEM Fan Manufacturing
Fan manufacturers can use the BE10720B001 as a motor platform for new industrial fan development or as a replacement for an existing motor configuration. Shaft dimensions, mounting structure, blade load, speed and electrical requirements should be verified before mass production.
5. Industrial Air Movement Equipment
The motor can be evaluated for equipment where the primary requirement is mechanical air movement through a fan blade. Its 80W power, 1350RPM speed and available DC voltage configurations provide several parameters for manufacturers to assess when developing application-specific fan systems.
Choosing an industrial motor based only on power or RPM can create problems after assembly. The motor must work together with the blade diameter, blade weight, fan-head structure, controller and expected operating duration.
For example, a motor that reaches the target speed without the actual blade load may still produce excessive current, temperature rise or vibration after installation. Buyers should therefore provide the blade specification and finished-fan requirements when requesting a motor evaluation.
The motor's Φ107×20mm size is another important consideration for OEM development. The available installation space, mounting points and shaft connection should be checked before the motor is approved for tooling or mass production.
Developing an industrial floor fan or commercial air circulation product and need a motor matched to the actual blade and control system?Send us your blade diameter and weight, required RPM and power, motor installation dimensions, shaft specifications, voltage, controller details and expected order quantity. Our team can review the complete application and discuss a suitable Industrial Fan Motor configuration for your project.
