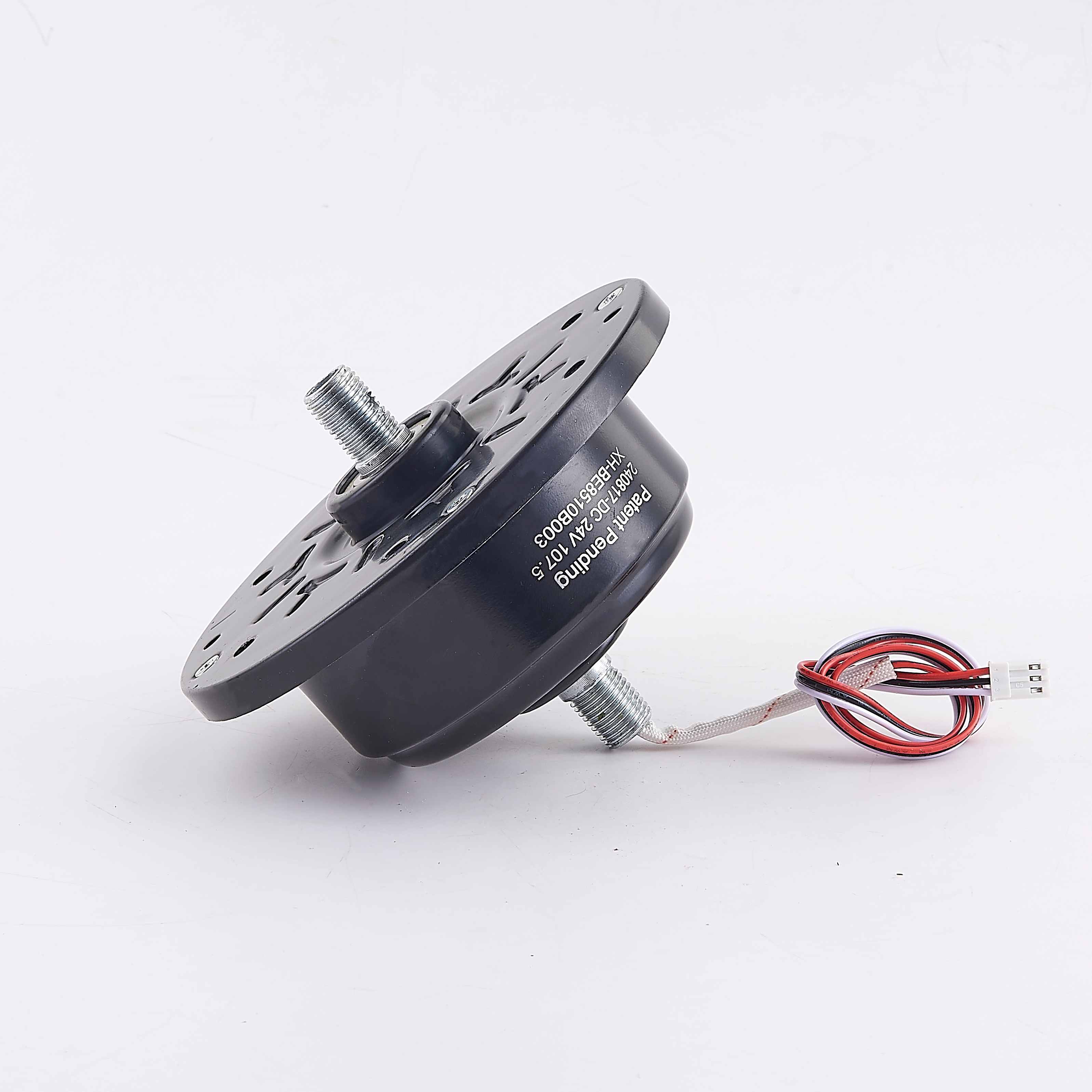

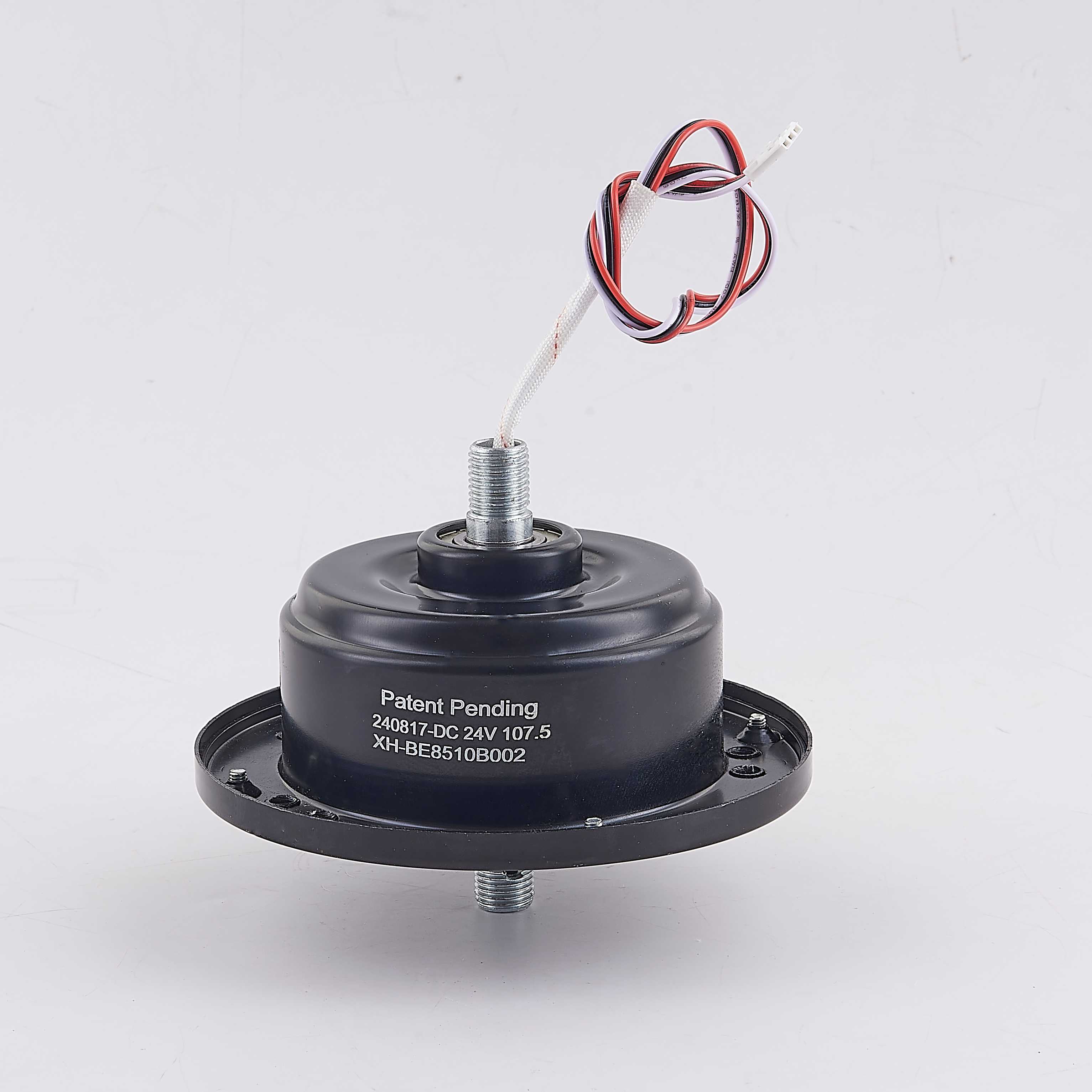

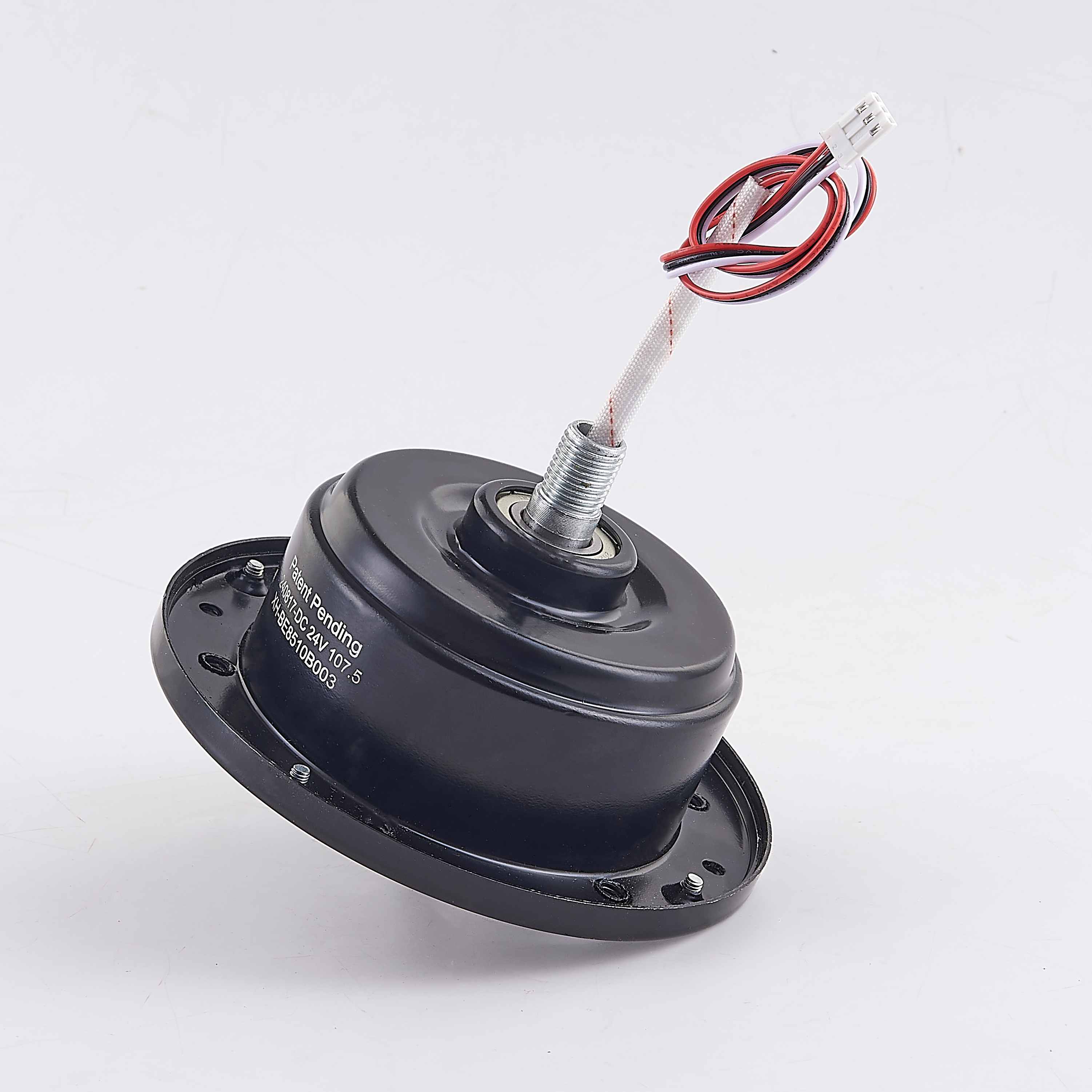

Long operating hours can raise motor temperature and increase maintenance concerns for home fan suppliers. The Brushless Ceiling Fan Motor is developed to handle elevated working temperatures while maintaining steady rotation in living room ceiling fans. Its brushless structure supports continuous household use with less mechanical wear, helping manufacturers and distributors reduce premature motor failures, warranty claims, and replacement costs. It is suitable for residential ceiling fan assembly, home fan upgrades, and regular bulk purchasing.

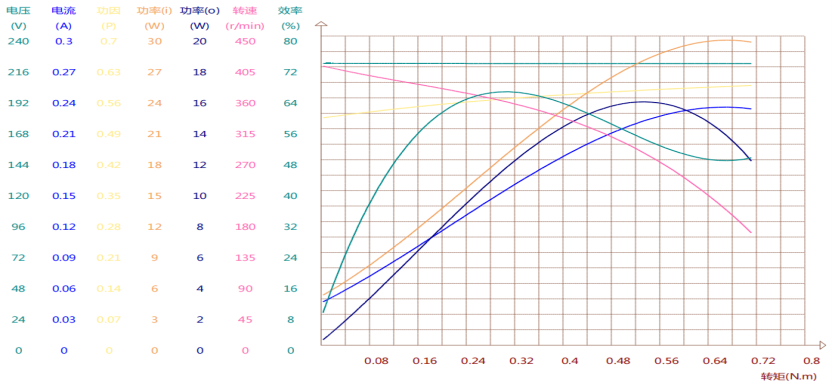

85 Performance curves

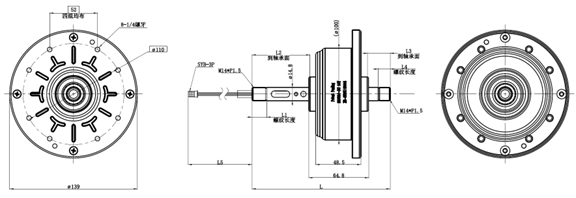

85 External dimensions
| Model No. | BE8510B001 | BE8512B001 | BE8515B001 | BE8516B001 | BE8518B001 | |
| Voltage | 24V | 24V | 24V | 24V | 24V | |
| Wire | 100% Copper | 100% Copper | 100% Copper | 100% Copper | 100% Copper | |
| Shell Material | galvanized steel sheet | galvanized steel sheet | galvanized steel sheet | galvanized steel sheet | galvanized steel sheet | |
| Stator | Diameter | 85mm | 85mm | 85mm | 85mm | 85mm |
| Thickness | 10mm | 12mm | 15mm | 16mm | 18mm | |
| Slot Number | 12 | 12 | 12 | 12 | 12 | |
| Material | silicon steel | silicon steel | silicon steel | silicon steel | silicon steel | |
| Rated-Load | Speed (r/min) | 200 | 250 | 240 | 240 | 230 |
| Power (W) | 30 | 35 | 40 | 45 | 45 | |
| Noise (dB(A)) | ＜40 | ＜40 | ＜40 | ＜40 | ＜40 | |
| Operation Life (Hours) | ＞8000 | ＞8000 | ＞8000 | ＞8000 | ＞8000 | |
| Application | Household ceiling fan | |||||
1、Five Motor Configurations for Household Ceiling Fans
The series includes BE8510B001, BE8512B001, BE8515B001, BE8516B001 and BE8518B001. Power options range from 30W to 45W, while rated-load speeds cover 200 to 250 r/min.
This range allows buyers to choose a Brushless Ceiling Fan Motor according to blade diameter, blade weight and airflow target. Our factory can test the selected motor under the customer’s actual blade load to confirm startup, speed response and running current.
2、85mm Silicon Steel Stator Platform
All models use an 85mm diameter silicon steel stator with 12 slots. Available stator thicknesses are 10mm, 12mm, 15mm, 16mm and 18mm, supporting different power and load requirements without changing the main stator diameter.
During production, stator dimensions, slot condition and winding data follow the approved model. This helps maintain consistent motor performance when buyers place repeat orders for the same ceiling fan design.
3、100% Copper Winding for Stable Operation
The motor series uses 100% copper wire to support stable conductivity and continuous household fan operation. A galvanized steel sheet shell protects the stator and rotor while providing a firm structure for ceiling fan assembly.
Our production checks cover winding consistency, shell fitting and visible motor condition. Wire length, connector type and rotation requirements can also be reviewed according to the buyer’s controller and housing design.
4、Low Noise for Indoor Living Spaces
The listed operating noise is below 40dB(A), making these motors suitable for ceiling fans installed in bedrooms, living rooms and dining areas. The operation life exceeds 8000 hours when the motor is matched with the correct driver and blade load.
Factory testing can cover startup, rated-load speed, vibration, running noise and continuous operation. Final noise should also be checked after the motor, blade and mounting structure are assembled into the complete fan.
5、BLDC Motor and Controller Matching
A Brushless Ceiling Fan Motor requires a compatible driver for speed regulation and stable startup. The controller settings must match the 24V motor, selected speed range, connector and rotation direction.
Because our factory produces fan motors and control systems, the motor and driver can be evaluated as one system. This helps reduce unstable speed, difficult startup and control compatibility issues during final fan assembly.
1、Living Room Ceiling Fans
The motor range is suitable for household ceiling fans installed in living rooms and open family areas. Buyers can select different power and speed combinations according to blade span, room coverage and desired airflow.
2、Bedroom Ceiling Fans
The below-40dB(A) operating noise supports bedroom fan projects where quiet performance is important. Low-speed stability should be tested with the actual blade and controller before production approval.
3、Dining Room Ceiling Fans
Brushless motors can be used in dining room ceiling fans that require steady airflow without excessive operating sound. The motor size should be matched with the decorative housing and available ceiling clearance.
4、Remote-Control Household Fans
The motor can be paired with a suitable BLDC driver for multiple speed settings, timer functions and remote operation. The required control functions and wiring interface should be confirmed during sample development.
5、OEM Household Ceiling Fan Ranges
Fan manufacturers can use the five motor options to develop several household ceiling fan models within one product range. Each motor should be selected according to the actual blade load rather than power alone.
1、BE8510B001
BE8510B001 uses a 10mm stator, 30W power and a rated-load speed of 200 r/min. It can be evaluated for lighter household ceiling fan structures requiring a compact motor configuration.
2、BE8512B001
BE8512B001 combines a 12mm stator, 35W power and 250 r/min speed. It provides the highest rated-load speed in this series and is suitable for fan designs that require faster blade rotation.
3、BE8515B001
BE8515B001 uses a 15mm stator, 40W power and 240 r/min speed. It offers a middle-to-high power option for standard household ceiling fan development.
4、BE8516B001
BE8516B001 has a 16mm stator, 45W power and a rated-load speed of 240 r/min. It can be considered for larger blade loads requiring additional motor output.
5、BE8518B001
BE8518B001 uses an 18mm stator and 45W power, with a rated-load speed of 230 r/min. The thicker stator provides another option for fan projects requiring higher output at a controlled speed.
The final model should be confirmed after testing the motor with the actual blade, driver and fan housing. Stator thickness or power should not be used as the only selection standard.
1、Confirm Blade Load
Blade diameter, number, weight and pitch angle affect motor current and rotational performance. Buyers should provide the actual blade or complete blade data before sampling.
2、Match the 24V Driver
The controller must support the selected 24V motor and required speed settings. Connector definition, rotation direction and protection functions should be confirmed before assembly.
3、Check Housing Space
The common 85mm stator diameter simplifies model comparison, but the different stator thicknesses affect installation depth. Internal housing clearance should be checked before selecting a motor.
4、Test the Complete Fan
Sample evaluation should cover startup, airflow, current, speed response, vibration, noise and temperature rise. Testing the unloaded motor alone cannot represent the final ceiling fan performance.
1、Keep the Motor Area Clean
Dust around the motor and ceiling canopy may reduce heat dissipation. The internal area should remain clean and dry, and water should not enter the motor or driver.
2、Inspect Blade Balance
Loose, damaged or uneven blades can create vibration and additional motor load. Blade alignment should be checked before a motor fault is confirmed.
3、Check Mounting Parts
Brackets, suspension rods and screws should remain secure during operation. Loose mounting parts may increase noise and affect the stability of the complete fan.
4、Inspect Wiring and Connectors
Loose terminals or incorrect wiring may cause unstable startup or speed changes. The power supply should be disconnected before electrical parts are inspected.
5、Separate Motor and Driver Faults
If the fan does not start or change speed correctly, the motor, driver, receiver and wiring should be checked separately. Clear troubleshooting guidance can reduce unnecessary motor replacement and after-sales returns.
For a Brushless Ceiling Fan Motor inquiry, please provide the preferred model, blade diameter, blade weight, target airflow, speed requirements, controller information, mounting dimensions, connector type, required quantity and destination market.
Our team can help compare the 30W, 35W, 40W and 45W options and arrange motor sampling, controller matching and complete ceiling fan testing before bulk production.
