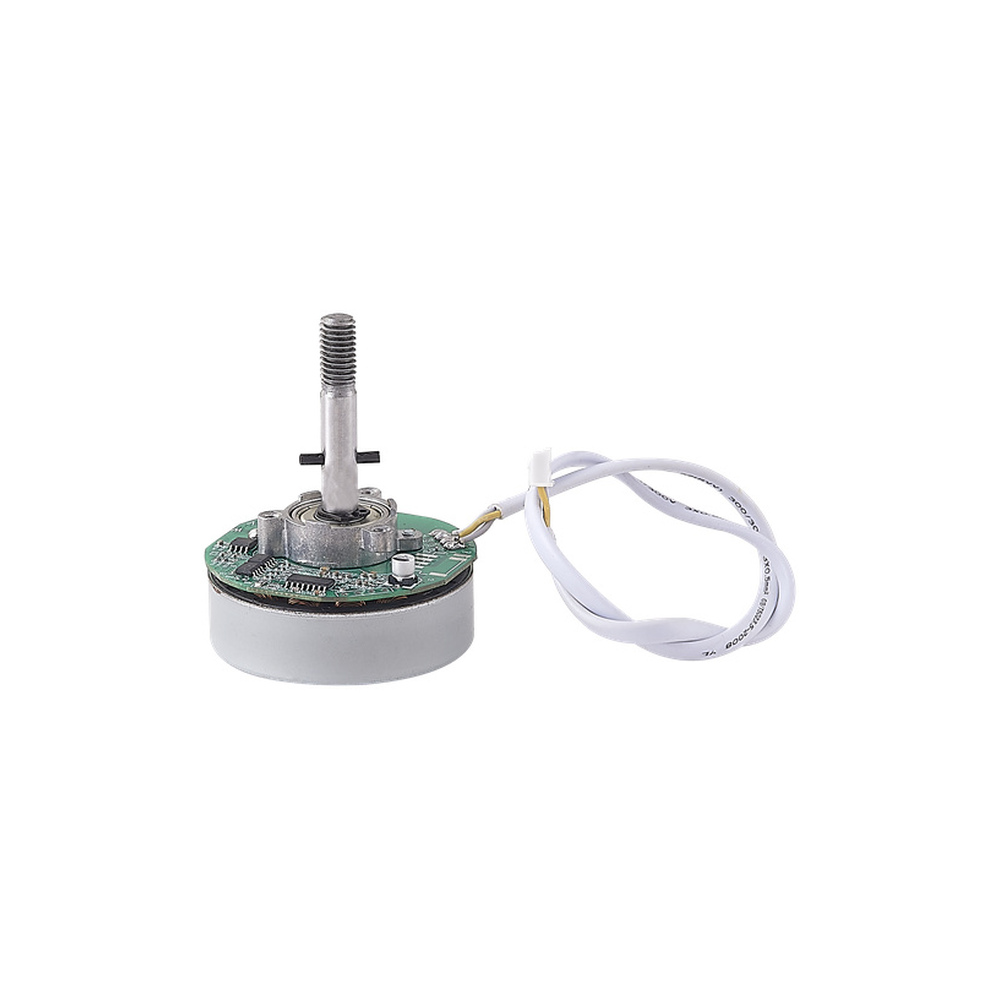

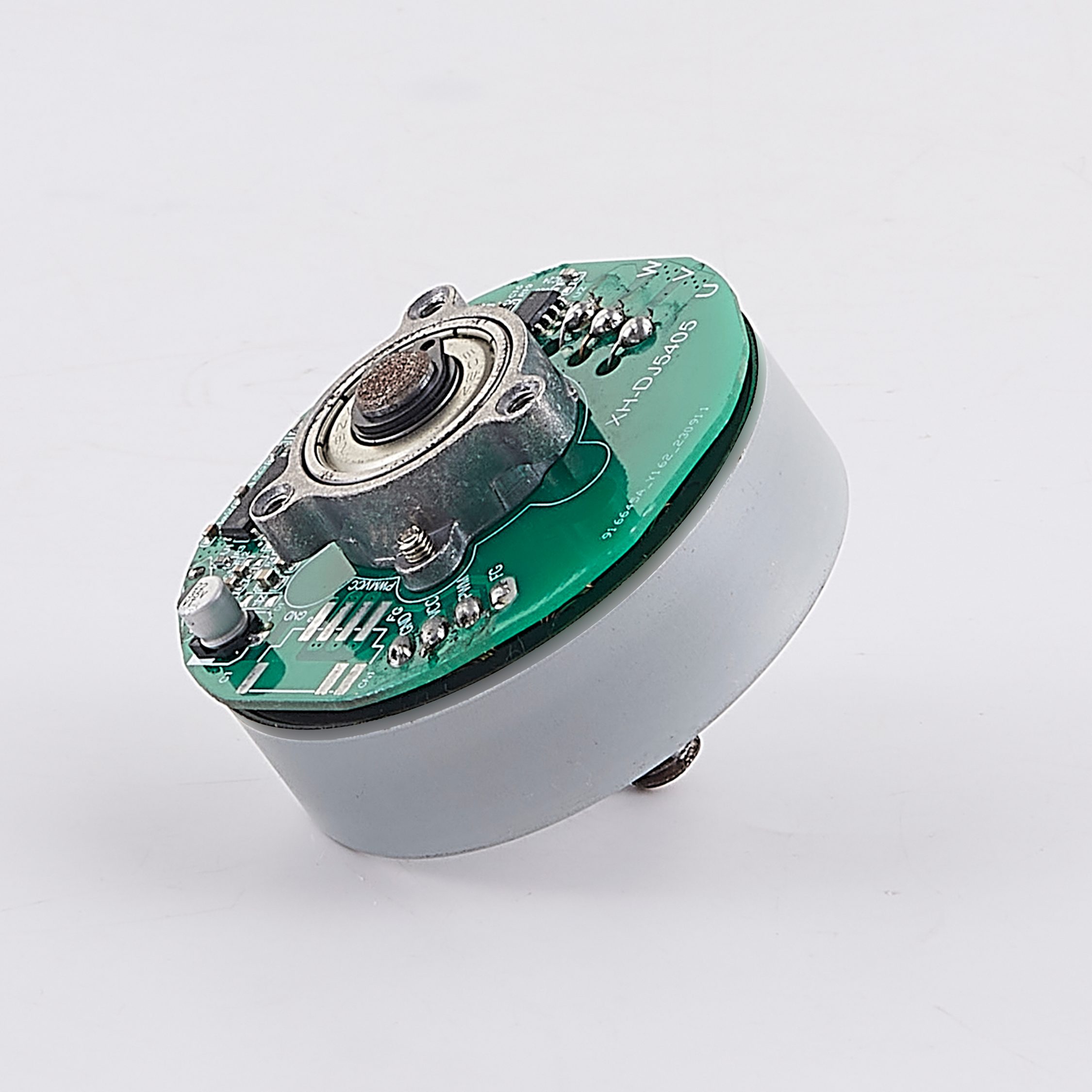

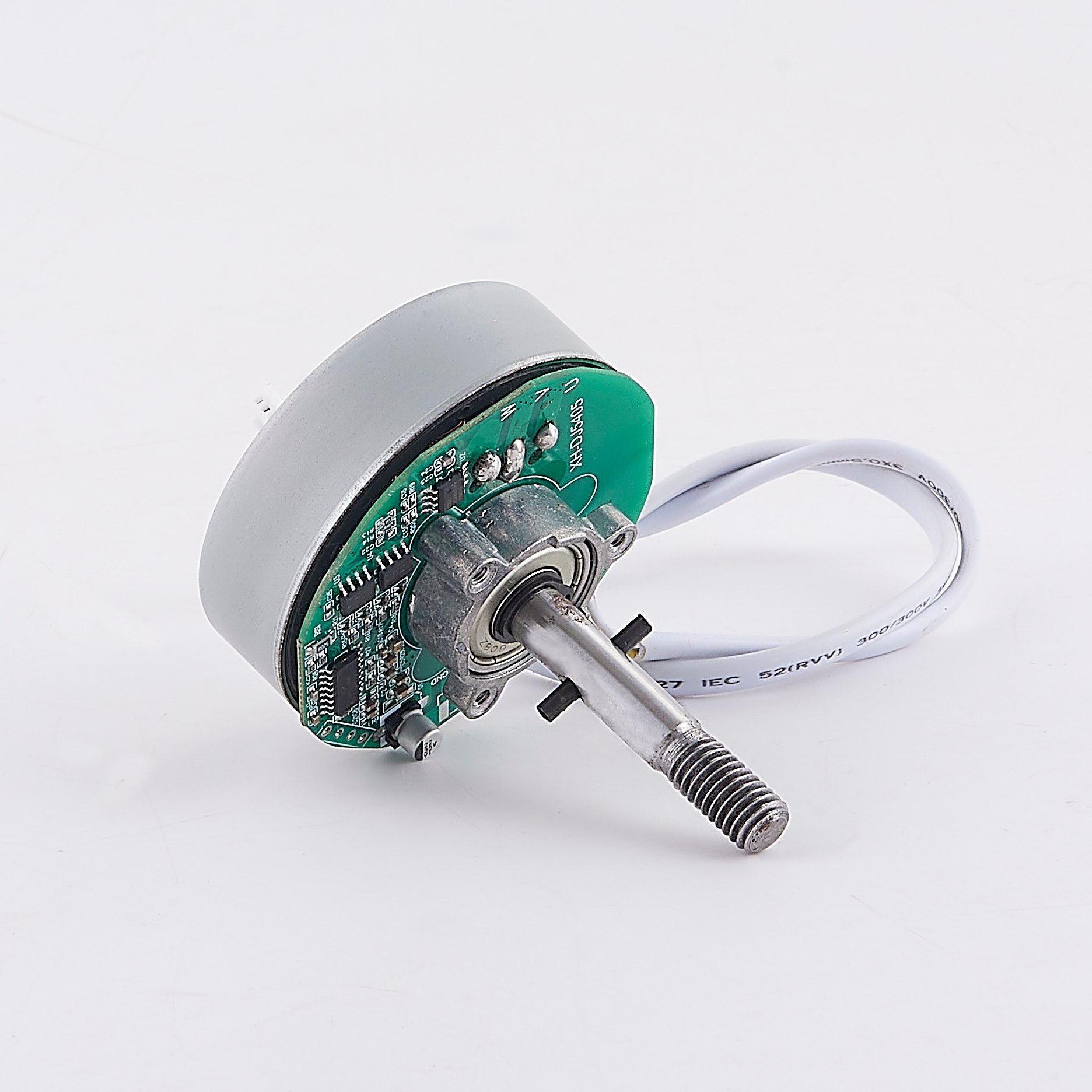

BLDC Fan Motor with Integrated Controller

1、24V 18W Configuration for Compact Fan Systems

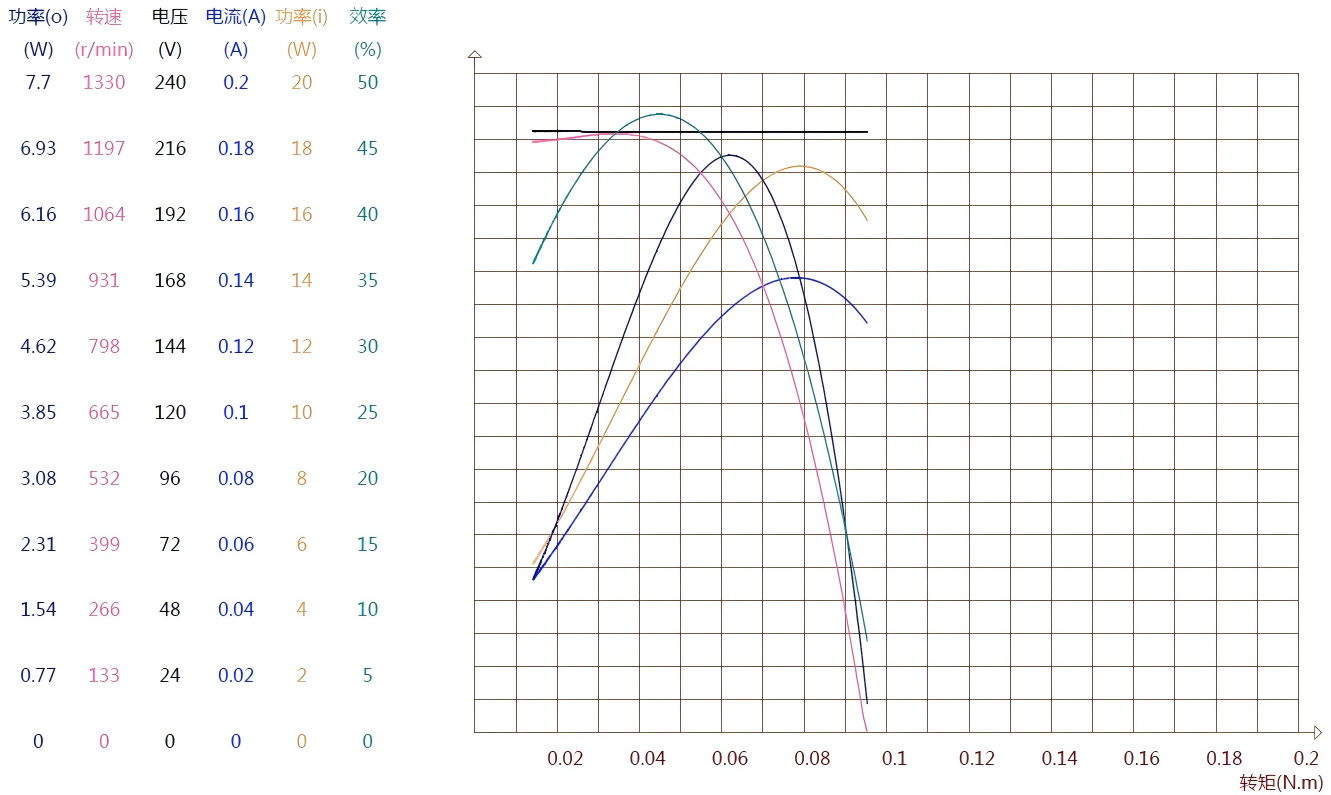

BE5810A007 operates at 24V with 18W rated power and reaches 1100 r/min under rated load. This balanced specification is suitable for fan products that do not require an oversized motor but still need steady blade rotation and continuous airflow.

Our factory can evaluate the BLDC Fan Motor with the buyer’s blade, driver and housing structure. This helps confirm whether the rated speed and power are suitable for the actual appliance before batch production.

2、48.5mm Compact Silicon Steel Stator

The motor uses a 48.5mm diameter, 8mm thick silicon steel stator with 12 slots. The compact dimensions support installation in fan housings where internal space is limited, while the silicon steel structure provides the magnetic base for stable rotation.

During production, the stator size, slot condition and winding data are controlled according to the approved sample. This supports better consistency when the same motor is supplied for repeat OEM orders.

3、CCA Winding with Galvanized Steel Shell

CCA wire is used for the motor winding, while the galvanized steel sheet shell protects the internal stator and rotor structure. The shell also provides a firm assembly surface for integration into compact household fan products.

Production checking covers winding arrangement, shell fitting and visible motor condition. Wire length, connector type and installation direction can be confirmed according to the customer’s control board and finished product structure.

4、Low Noise and Long Operating Life

The listed operating noise is below 40dB(A), making this BLDC Fan Motor suitable for products used in bedrooms, offices and other indoor areas where excessive sound may affect user comfort. Its operation life exceeds 8000 hours under suitable working conditions.

Before delivery, the motor can be checked for startup, rated-load speed, running noise and vibration. Final testing should still be completed inside the finished appliance because the blade and housing also influence operating sound.

1、Bedroom Ceiling Fans

BE5810A007 can be evaluated for compact bedroom ceiling fans requiring low-noise airflow. The actual blade diameter, mounting structure and controller should be tested together with the motor before production approval.

2、Pedestal Fans

The 24V and 18W configuration is suitable for selected pedestal fan projects. Manufacturers should match the 1100 r/min speed with the blade weight, blade pitch and required airflow.

3、Air Circulation Fans

The motor can support circulation fan products used to move air through bedrooms, offices and shared indoor spaces. Air duct resistance and blade design should be included in the sample test.

4、Bathroom Heater Fans

The listed application range includes bathroom heaters that use internal fan systems to move warm air. Buyers should confirm the installation temperature, ventilation layout and operating duration before selecting the motor.

5、Exhaust Fan Systems

BE5810A007 can also be evaluated for compact exhaust fan equipment. The finished unit should be tested for airflow resistance, running current, vibration and continuous operation.

1、Confirm the Blade Load

Blade diameter, blade quantity, pitch angle and total weight affect the motor load. Buyers should provide the actual blade or detailed blade specifications instead of selecting the motor only by rated speed.

2、Match the 24V Driver

The control board must support the 24V motor configuration. Speed settings, rotation direction, connector definition and protection functions should be confirmed before sample assembly.

3、Check the Mechanical Installation

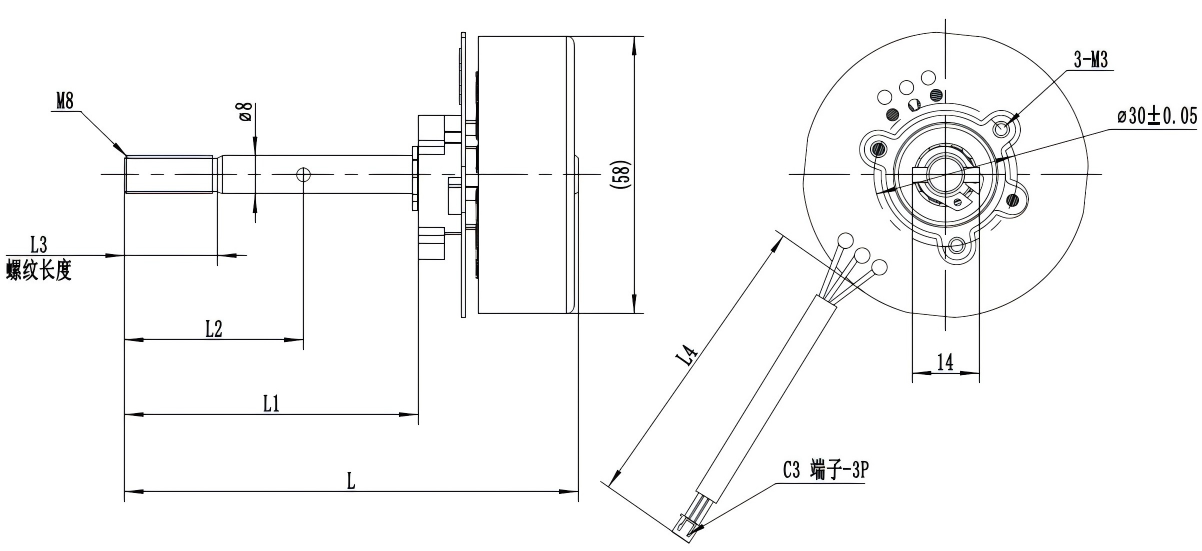

The 48.5mm stator diameter and 8mm thickness are important references, but buyers should also confirm shaft dimensions, mounting holes, housing depth and wire direction.

4、Approve the Complete Appliance

Motor approval should be completed with the actual blade, housing and controller. Startup, airflow, current, noise, vibration and temperature rise should be checked as one complete system.

Maintenance and After-Sales Guidance

1、Keep Ventilation Areas Clean

Dust around the motor and fan housing may reduce heat dissipation. Air openings should be cleaned regularly without allowing water to enter the motor or control board.

2、Inspect Blade Balance

A loose, damaged or uneven blade may increase vibration and motor load. The blade hub and shaft connection should be checked before identifying the motor as the source of abnormal noise.

3、Check Wiring and Connectors

Loose terminals or damaged wires may cause unstable startup or speed fluctuation. Electrical connections should only be inspected after the appliance is disconnected from power.

4、Monitor Noise and Temperature

A noticeable increase in noise or operating temperature may indicate blocked ventilation, blade imbalance or incorrect driver matching. The appliance should be stopped and checked before continued use.

5、Record the Approved Motor Configuration

After-sales teams should record model BE5810A007, the driver type and the installed blade configuration. Keeping these records helps prevent incorrect replacement and simplifies future repeat orders.

Order Guidance

For a BLDC Fan Motor inquiry, please provide the required quantity, fan blade dimensions, target airflow, shaft and mounting details, driver information, connector type and destination market.

Our team can review model BE5810A007 with your blade, controller and complete fan structure. Motor sampling, driver compatibility testing and finished-appliance evaluation can be arranged before bulk production.
